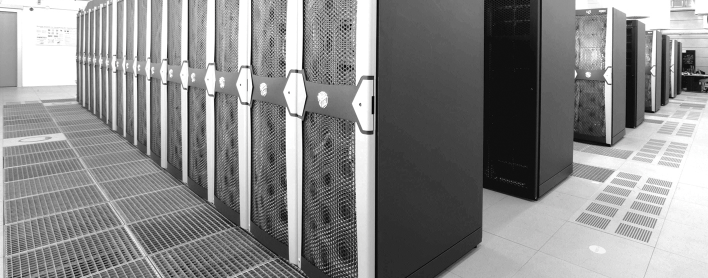

Applicable to raised floor requiring centilation under the floor.

In combination with anti-static floor,or be applied independently.

FS-60G:

Made of die-casted aluminum with a process of melting, die casting, machining and surface treatment. It features light weight, higher strength and good ventilation. Ventilation ratio is 60%. Concentrated load at the center is more than 5,000N.

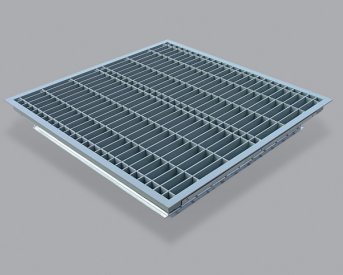

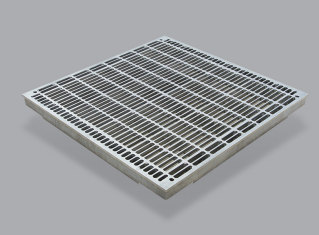

FS-70G:

 Made of high strength structural steel with a process of stamping, welding, phosphorization and coating. It features higher strength and larger ventilation area. Ventilation ratio is up to 70%.

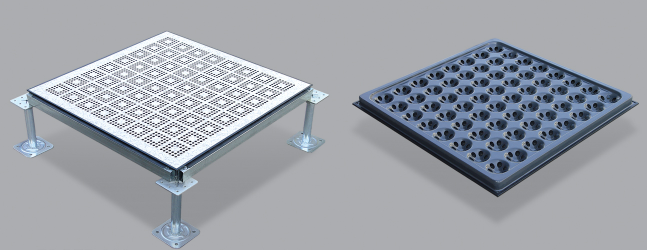

FS-PER 800:

Top and bottom plate are made of superior-quality steel plate with a process of stamping. welding, phosphorization and coating. Top finishes covering is HPL or Vinyl. It is made up of 3 types. With trim edge, with small trim edge and without trim edge. The overall dimension is 600×600×35(32). It shall be used in combination with steel anti-static raised floor. Ventilation ratio is 20%.

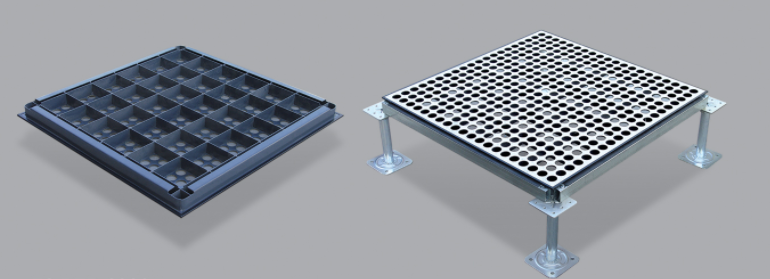

FS-PER 1000:

Top plate and reinforcement grid are made of steel plate with a process of stamping, welding, phosphorization and coating. Top finishes covering is HPL or Vinyl. It is made up of 3 types, With trim edge, with small trim edge and without trim edge. And it shall be used in combination with steel anti-static raised floor. It features high strength, larger ventilation area. Ventilation ratio is 56%.
