  • 1-to-32 fiber distribution box

    • Return
    • Message
    Product Details

    Fiber distribution box is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx (FTTC,FTTB,FTTH,FTTP,FTTZ,FTTN,FTTO,FTTSA) network building. It can be used indoor or outdoor.

    Hangzhou Huayao Communication Equipments CO.,LTD had the honor to serve some famous company all over the world such as China unicom (CUCC), China mobile (CMCC) and China telecom (CTCC).

    Product Description

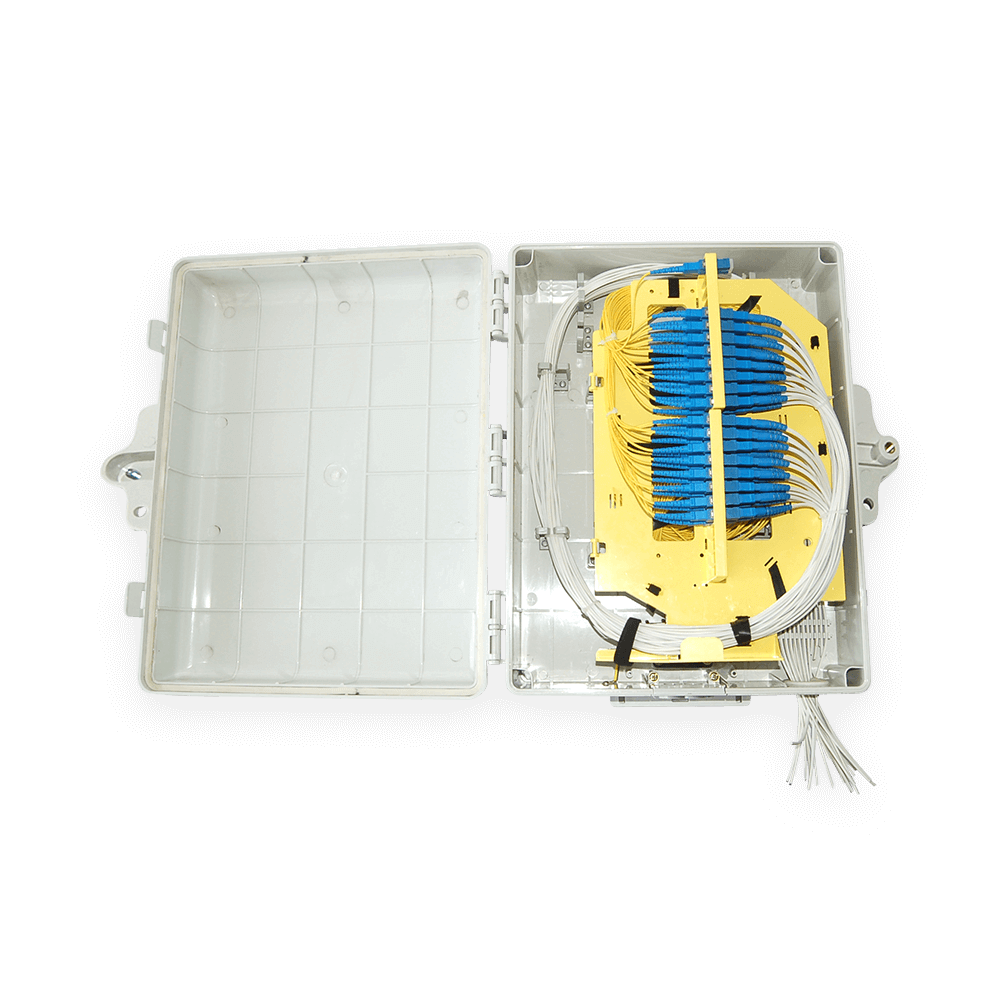

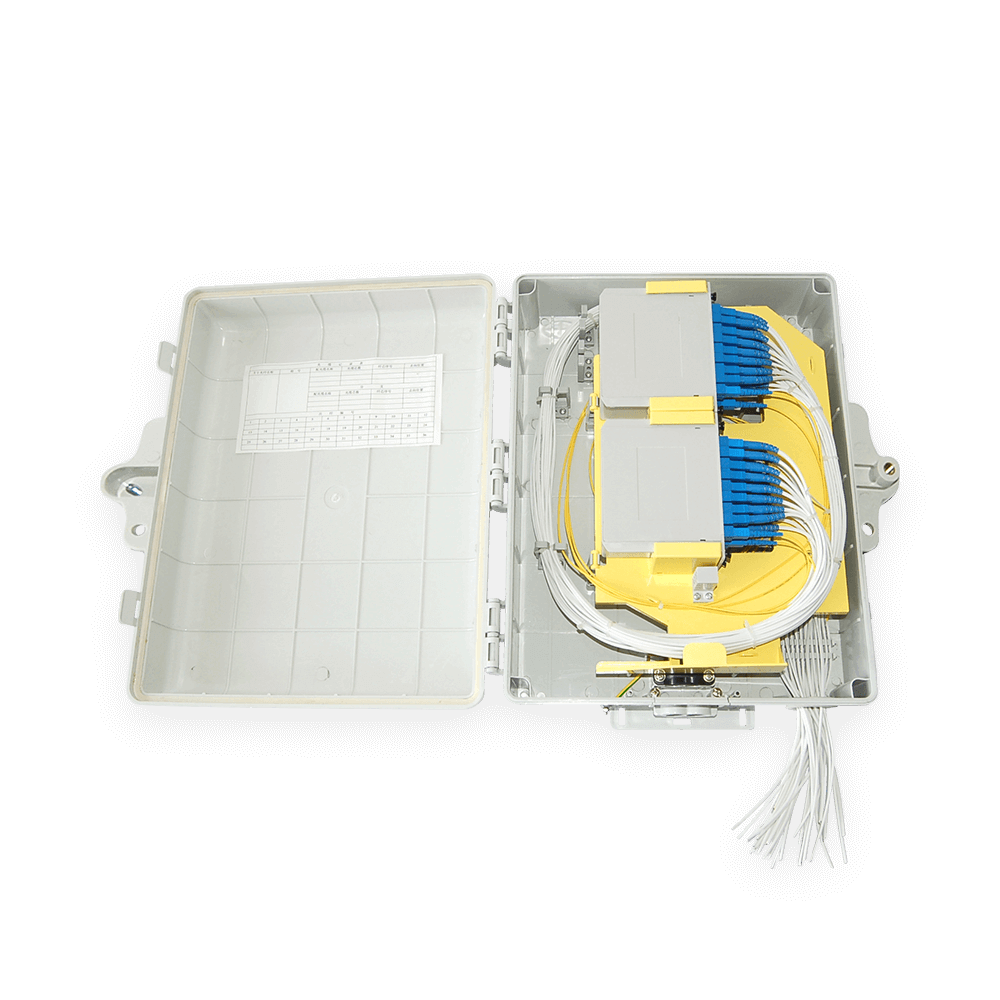

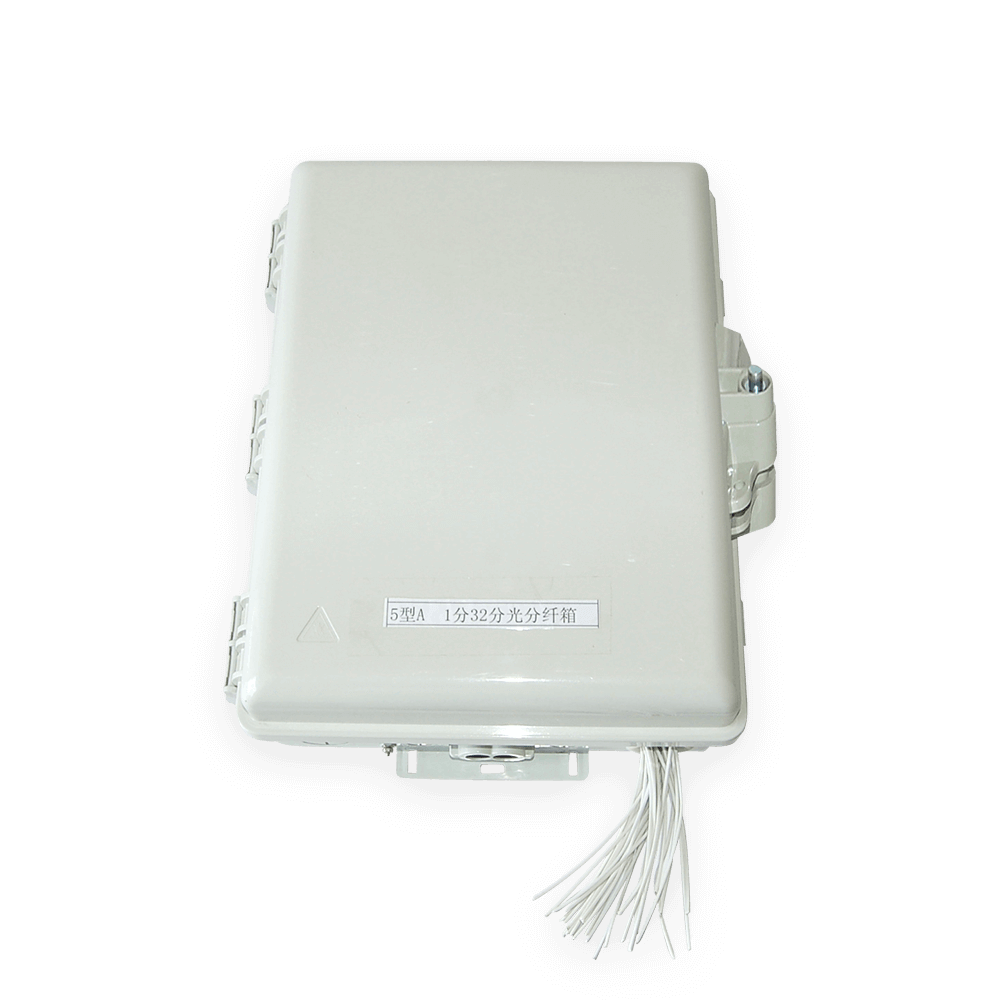

    Model Size Internal Structure Appearance

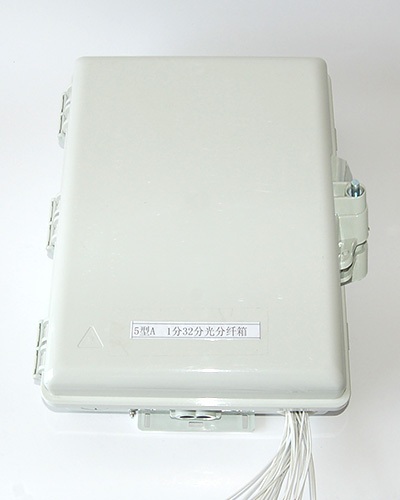

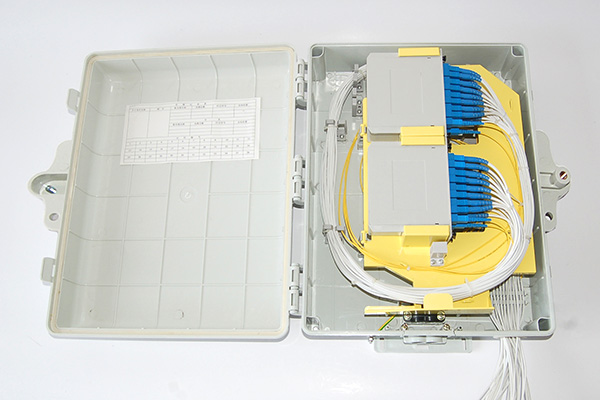

    HY-5-A 420×320×125mm

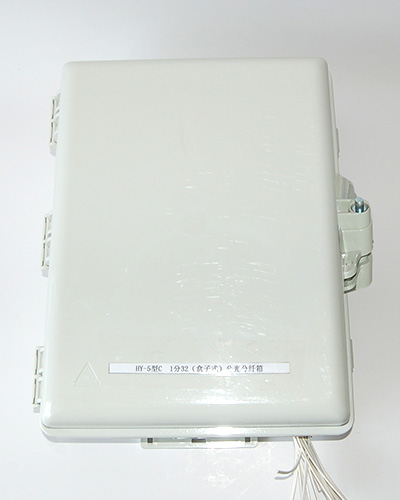

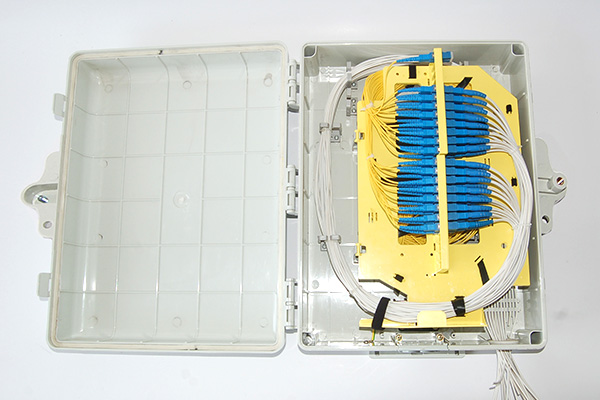

    HY-5-C 420×320×125mm
    Environmental Requirement

    Working temperature: -40℃~+65℃

    Relative humidity:≤85%(+30℃)

    Atmosphere pressure:70Kpa~106Kpa

    Main Technique Data

    Insertion loss:≤0.2dB

    UPC return loss:≥50dB

    APC return loss: ≥60dB

    Life of insertion and extraction: >1000 times

    Thunder-proof Technique Data

    The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation Resistance≥2x104MΩ/500V.

    The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over; U≥ 3000V.

    Product Feature

    · Total enclosed structure.

    · ABS material used ensures the body strong and light.

    · Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution..all in one.

    · Cable,pigtails,patch cords are running through own path without disturbing each other, easy maintenance.

    · Space saving! Double-layer design for easier installation and maintenances.

    · Lower layer for splitters and over length fiber storage.

    · Upper layer for splicing, cross-connecting and fiber distribution.

    · Cable fixing units provided for fixing the outdoor optical cable.

    · Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP 65.

    · Distribution panel can be flipped up, feeder cable can be placed in a cup-join way, easy for maintenance and installation.

    · Lock provided for extra security.

    · Cabinet can be installed by the way of wall-mounted, suitable for both indoor and outdoor use.

    Our Service

    HUAYAO Before-Sales Service

    1.Supply the samples of HUAYAO for free.
    2.Give you the solution as your requirements.
    3.Tell you the process from production to loading.
    4.Care about the case of shipment and try our best to solve problems.

    HUAYAO After-Sales Service

    We guarantee a period of 10 years.
    After the practical completion of the project that all materials shall operate free of any defects due to defective materials and bad workmanship, however not guarantee on the human error cause by employees of original purchaser or a subsequent contractor.

    Packing & Delivery

    Packing Details : Finally in 5 layer double corrugated standard export carton or as your requests.
    Delivery Details : We can arrange goods by Air, Sea, Express.

    FAQ
    Q Are you trading company or manufacturer?
    A We are factory.
    Q How long is your delivery time?
    A Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
    Q Do you provide samples? Is it free or extra?
    A Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q What is your terms of payment?
    A Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us.
