Fiber distribution box is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx (FTTC,FTTB,FTTH,FTTP,FTTZ,FTTN,FTTO,FTTSA) network building. It can be used indoor or outdoor.
Hangzhou Huayao Communication Equipments CO.,LTD had the honor to serve some famous company all over the world such as China unicom (CUCC), China mobile (CMCC) and China telecom (CTCC).
Model | Size | Internal Structure | Appearance |

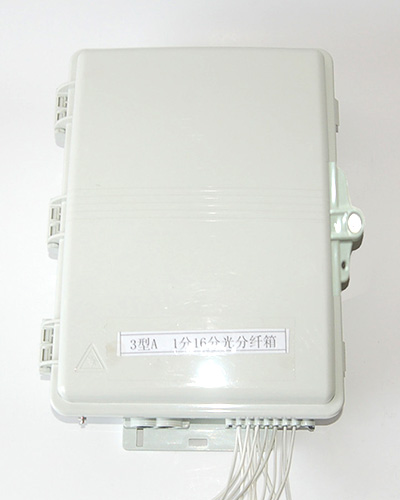

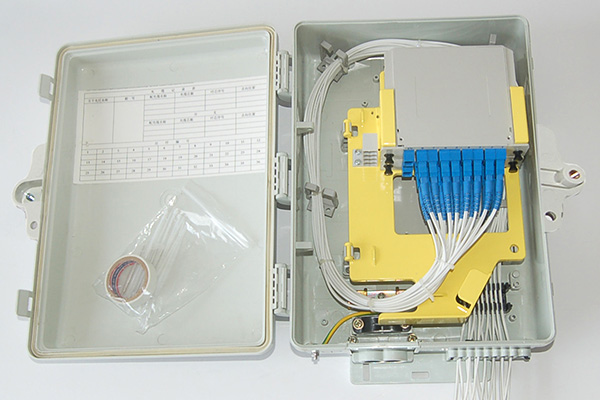

HY-3-A | 325×235×110mm | ![]() |
![]() |

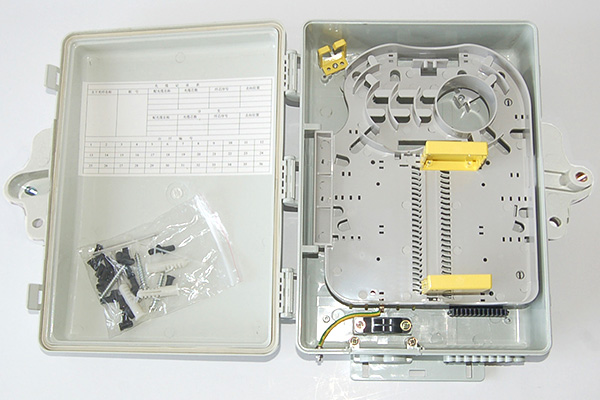

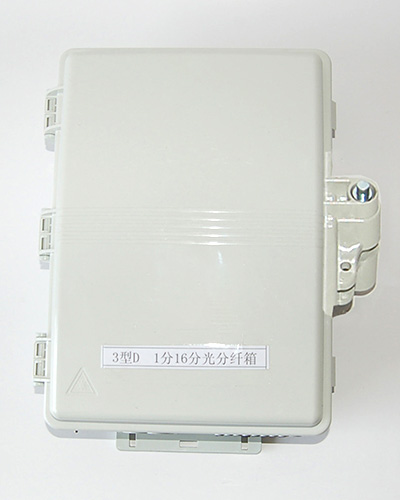

HY-3-D | 325×235×110mm | ![]() |
![]() |
Working temperature: -40℃~+65℃
Relative humidity:≤85%(+30℃)
Atmosphere pressure:70Kpa~106Kpa
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation Resistance≥2x104MΩ/500V.
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over; U≥ 3000V.
· Total enclosed structure.
· ABS material used ensures the body strong and light.
· Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution..all in one.
· Cable,pigtails,patch cords are running through own path without disturbing each other, easy maintenance.
· Space saving! Double-layer design for easier installation and maintenances.
· Lower layer for splitters and over length fiber storage.
· Upper layer for splicing, cross-connecting and fiber distribution.
· Cable fixing units provided for fixing the outdoor optical cable.
· Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP 65.
· Distribution panel can be flipped up, feeder cable can be placed in a cup-join way, easy for maintenance and installation.
· Lock provided for extra security.
· Cabinet can be installed by the way of wall-mounted, suitable for both indoor and outdoor use.
![]() |
HUAYAO Before-Sales Service1.Supply the samples of HUAYAO for free. |
![]() |
HUAYAO After-Sales ServiceWe guarantee a period of 10 years. |
Packing Details : Finally in 5 layer double corrugated standard export carton or as your requests.
Delivery Details : We can arrange goods by Air, Sea, Express.
Q | Are you trading company or manufacturer? |
A | We are factory. |
Q | How long is your delivery time? |
A | Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
Q | Do you provide samples? Is it free or extra? |
A | Yes, we could offer the sample for free charge but do not pay the cost of freight. |
Q | What is your terms of payment? |
A | Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. |
If you have another question, pls feel free to contact us. |
