  • 2 in 2 out horizontal fiber splice closure

    • Return
    • Message
    Product Details

    Fiber Optic Splice Closure is used for protective connection of two or multiple optical cable and optic fiber distribution. It is one of commonlyused equipment of user access point.Used for the outdoor connection between optical distribution cable and optical inroom cable. Available for aerial,duct,direct buried application.

    Hangzhou Huayao Communication Equipments CO.,LTD had the honor to serve some famous company all over the world such as China unicom (CUCC), China mobile (CMCC) and China telecom (CTCC).

    Product Description

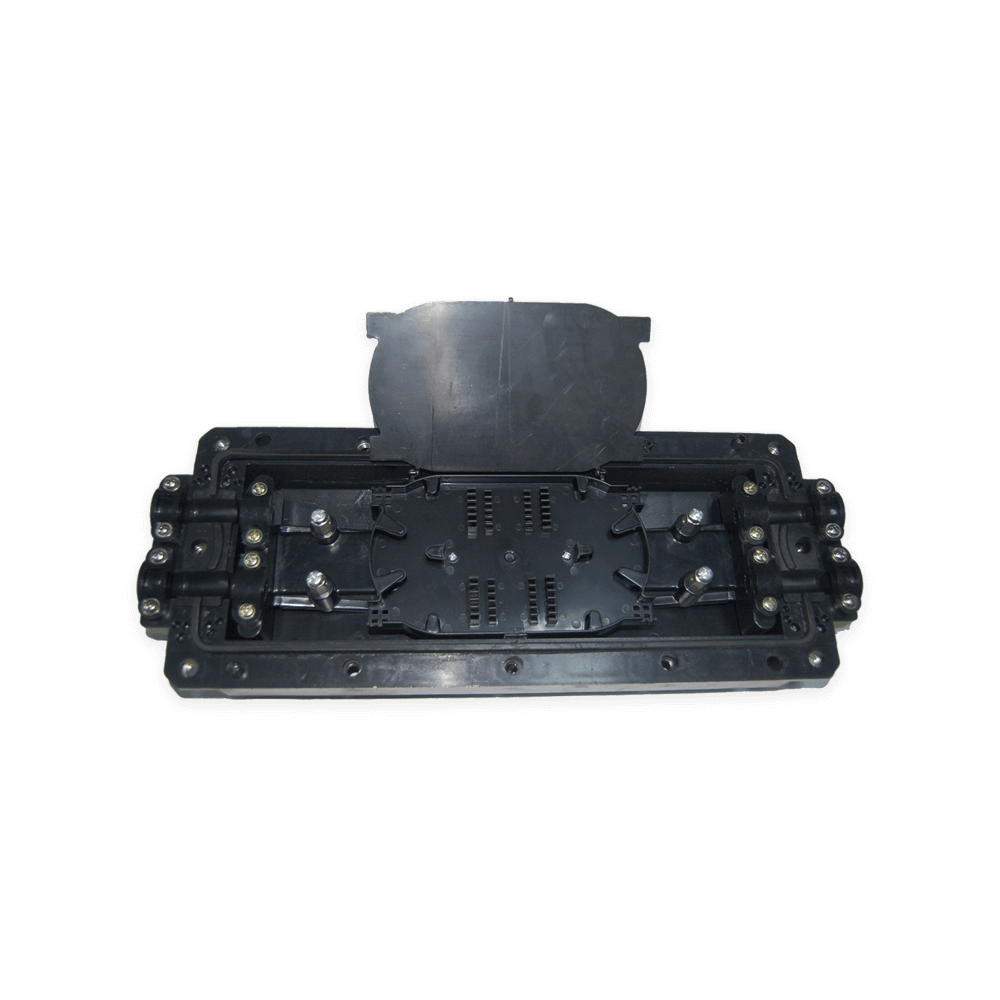

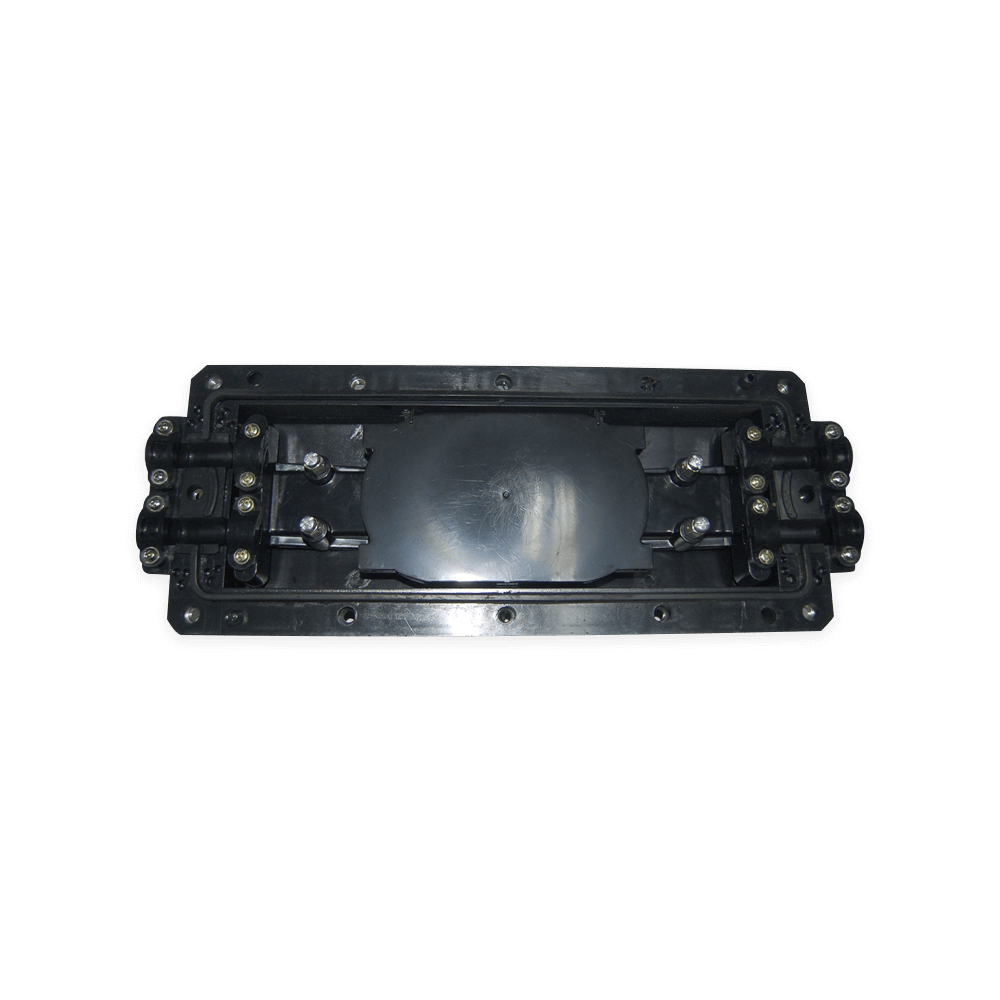

    Product Name 2 in 2 out horizontal fiber splice closure
    Material PC or Customization
    Color Black
    Size (W×H×D) 425×163.5×87mm
    Protection Level IP68
    Single Tray 12 Cores
    Capacity Max.96 Cores
    Install Aerial, Direct-buried, Wall-mounting, Duct-mounting
    Certification RoHS SGS UL TLC ISO9001 ISO14001 ISO18001
    Product Feature

    ◆Aging resistance with good stability of heat, thermal radiation, air, ozone and so on.

    ◆Corrosion resistance strong resistance against acid, salt, oxidants and so on.

    ◆Sealing Technology The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance.

    ◆Close device no need special tools for easy installation and re open.

    ◆Grouping function inlet outlet at the two sides can meet most requirements.

    ◆Splice tray using cascading structure, no need to take other splice tray when do operation.

    Our Service

    HUAYAO Before-Sales Service

    1.Supply the samples of HUAYAO for free.
    2.Give you the solution as your requirements.
    3.Tell you the process from production to loading.
    4.Care about the case of shipment and try our best to solve problems.

    HUAYAO After-Sales Service

    We guarantee a period of 10 years.
    After the practical completion of the project that all materials shall operate free of any defects due to defective materials and bad workmanship, however not guarantee on the human error cause by employees of original purchaser or a subsequent contractor.

    Packing & Delivery

    Packing Details : Finally in 5 layer double corrugated standard export carton or as your requests.
    Delivery Details : We can arrange goods by Air, Sea, Express.

    FAQ
    Q Are you trading company or manufacturer?
    A We are factory.
    Q How long is your delivery time?
    A Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
    Q Do you provide samples? Is it free or extra?
    A Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q What is your terms of payment?
    A Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us.
